TSX-3225
TSX-3225 – Thạch anh
Thạch anh dải MHz (MHz Range Crystal Unit). SMD kích thước nhỏ, profile thấp. Dải tần số : 16 MHz đến 50 MHz
Thông số
- Mã nhà sản xuất
- TSX-3225
- Hãng sản xuất
- Epson
- Đóng gói
- 3.2 x 2.5 x 0.6 mm
- Nhóm sản phẩm (Product group)
- Thạch anh (Crystal Unit)
- Số mã đặt hàng
- 264
- Dải tần số có sẵn
- 16 – 48 MHz
Thông tin chi tiết
TSX-3225: Thạch anh dải MHz (MHz Range Crystal Unit), SMD kích thước nhỏ, profile thấp.
Các mã đặt hàng (264 mã)
| Mã đặt hàng (Epson P/N) | Mã đầy đủ | Tần số | CL (pF) | Dung sai 25 ℃ (ppm) | Dung sai theo nhiệt độ (ppm) | Nhiệt độ hoạt động (℃) | ESR max (Ω) | Kích thước (mm) |
|---|---|---|---|---|---|---|---|---|
| X1E0000210019 | TSX-3225 16.000000 MHz 9.0 +10.0-10.0 | 16 MHz | 9 | ±10 | ±9 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210111 | TSX-3225 16.000000 MHz 8.0 +10.0-10.0 | 16 MHz | 8 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210112 | TSX-3225 16.000000 MHz 9.0 +10.0-10.0 | 16 MHz | 9 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210113 | TSX-3225 16.000000 MHz 10.0 +10.0-10.0 | 16 MHz | 10 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210114 | TSX-3225 16.000000 MHz 12.0 +10.0-10.0 | 16 MHz | 12 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210115 | TSX-3225 16.000000 MHz 16.0 +10.0-10.0 | 16 MHz | 16 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210116 | TSX-3225 16.000000 MHz 8.0 +10.0-10.0 | 16 MHz | 8 | ±10 | ±20 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210117 | TSX-3225 16.000000 MHz 9.0 +10.0-10.0 | 16 MHz | 9 | ±10 | ±20 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210118 | TSX-3225 16.000000 MHz 10.0 +10.0-10.0 | 16 MHz | 10 | ±10 | ±20 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210119 | TSX-3225 16.000000 MHz 12.0 +10.0-10.0 | 16 MHz | 12 | ±10 | ±20 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210120 | TSX-3225 16.000000 MHz 16.0 +10.0-10.0 | 16 MHz | 16 | ±10 | ±20 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210193 | TSX-3225 16.000000 MHz 16.0 +10.0-10.0 | 16 MHz | 16 | ±10 | ±18 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210375 | TSX-3225 16.000000 MHz 9.0 +10.0-10.0 | 16 MHz | 9 | ±10 | ±18 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210421 | TSX-3225 16.000000 MHz 20.0 +10.0-10.0 | 16 MHz | 20 | ±10 | ±18 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210503 | TSX-3225 16.000000 MHz 9.0 +15.0-15.0 | 16 MHz | 9 | ±15 | ±25 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210578 | TSX-3225 16.000000 MHz 8.0 +10.0-10.0 | 16 MHz | 8 | ±10 | ±18 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210599 | TSX-3225 16.000000 MHz 7.0 +10.0-10.0 | 16 MHz | 7 | ±10 | ±18 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210613 | TSX-3225 16.000000 MHz 8.0 +10.0-10.0 | 16 MHz | 8 | ±10 | ±15 | -30 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210696 | TSX-3225 16.000000 MHz 18.0 +10.0-10.0 | 16 MHz | 18 | ±10 | ±10 | -20 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210729 | TSX-3225 16.000000 MHz 12.0 +10.0-10.0 | 16 MHz | 12 | ±10 | ±10 | -20 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210796 | TSX-3225 16.000000 MHz 20.0 +10.0-10.0 | 16 MHz | 20 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210803 | TSX-3225 16.000000 MHz 8.0 +10.0-10.0 | 16 MHz | 8 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210853 | TSX-3225 16.000000 MHz 12.0 +10.0-10.0 | 16 MHz | 12 | ±10 | ±10 | 0 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210906 | TSX-3225 16.000000 MHz 22.0 +20.0-20.0 | 16 MHz | 22 | ±20 | ±10 | -20 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210913 | TSX-3225 16.000000 MHz 18.0 +10.0-10.0 | 16 MHz | 18 | ±10 | ±20 | -40 to +105 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210983 | TSX-3225 16.000000 MHz 18.0 +10.0-10.0 | 16 MHz | 18 | ±10 | ±20 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210771 | TSX-3225 16.384000 MHz 8.0 +10.0-10.0 | 16.384 MHz | 8 | ±10 | ±20 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000211060 | TSX-3225 16.384000 MHz 16.0 +10.0-10.0 | 16.384 MHz | 16 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000211083 | TSX-3225 16.384000 MHz 12.0 +30.0-30.0 | 16.384 MHz | 12 | ±30 | ±20 | -20 to +105 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000211125 | TSX-3225 16.384000 MHz 12.0 +10.0-10.0 | 16.384 MHz | 12 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210437 | TSX-3225 18.432000 MHz 16.0 +10.0-10.0 | 18.432 MHz | 16 | ±10 | ±18 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210469 | TSX-3225 18.432000 MHz 12.0 +10.0-10.0 | 18.432 MHz | 12 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210789 | TSX-3225 18.432000 MHz 20.0 +10.0-10.0 | 18.432 MHz | 20 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000211027 | TSX-3225 18.432000 MHz 12.0 +10.0-10.0 | 18.432 MHz | 12 | ±10 | ±20 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210285 | TSX-3225 19.200000 MHz 12.0 +10.0-10.0 | 19.2 MHz | 12 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210594 | TSX-3225 19.200000 MHz 10.0 +10.0-10.0 | 19.2 MHz | 10 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210864 | TSX-3225 19.200000 MHz 12.0 +10.0-10.0 | 19.2 MHz | 12 | ±10 | ±20 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000211028 | TSX-3225 19.200000 MHz 12.0 +30.0-30.0 | 19.2 MHz | 12 | ±30 | ±30 | -40 to +105 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000211075 | TSX-3225 19.200000 MHz 7.0 +10.0-10.0 | 19.2 MHz | 7 | ±10 | ±30 | -40 to +105 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210047 | TSX-3225 20.000000 MHz 9.0 +10.0-10.0 | 20 MHz | 9 | ±10 | ±20 | -40 to +105 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210183 | TSX-3225 20.000000 MHz 16.0 +10.0-10.0 | 20 MHz | 16 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210239 | TSX-3225 20.000000 MHz 12.0 +10.0-10.0 | 20 MHz | 12 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210246 | TSX-3225 20.000000 MHz 9.0 +10.0-10.0 | 20 MHz | 9 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210260 | TSX-3225 20.000000 MHz 18.0 +10.0-10.0 | 20 MHz | 18 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210356 | TSX-3225 20.000000 MHz 10.0 +10.0-10.0 | 20 MHz | 10 | ±10 | ±10 | -20 to +70 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210418 | TSX-3225 20.000000 MHz 9.0 +10.0-10.0 | 20 MHz | 9 | ±10 | ±18 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210448 | TSX-3225 20.000000 MHz 18.0 +10.0-10.0 | 20 MHz | 18 | ±10 | ±10 | -20 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210483 | TSX-3225 20.000000 MHz 12.0 +10.0-10.0 | 20 MHz | 12 | ±10 | ±20 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210496 | TSX-3225 20.000000 MHz 16.0 +10.0-10.0 | 20 MHz | 16 | ±10 | ±20 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210570 | TSX-3225 20.000000 MHz 18.0 +10.0-10.0 | 20 MHz | 18 | ±10 | ±18 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210581 | TSX-3225 20.000000 MHz 10.0 +15.0-15.0 | 20 MHz | 10 | ±15 | ±20 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210582 | TSX-3225 20.000000 MHz 12.0 +30.0-30.0 | 20 MHz | 12 | ±30 | ±50 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210624 | TSX-3225 20.000000 MHz 12.0 +10.0-10.0 | 20 MHz | 12 | ±10 | ±18 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210636 | TSX-3225 20.000000 MHz 12.0 +15.0-15.0 | 20 MHz | 12 | ±15 | ±18 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210741 | TSX-3225 20.000000 MHz 8.0 +10.0-10.0 | 20 MHz | 8 | ±10 | ±10 | -20 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210755 | TSX-3225 20.000000 MHz 9.0 +10.0-10.0 | 20 MHz | 9 | ±10 | ±15 | -20 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210761 | TSX-3225 20.000000 MHz 8.0 +10.0-10.0 | 20 MHz | 8 | ±10 | ±20 | -40 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210914 | TSX-3225 20.000000 MHz 20.0 +10.0-10.0 | 20 MHz | 20 | ±10 | ±10 | -20 to +75 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000211119 | TSX-3225 20.000000 MHz 7.0 +10.0-10.0 | 20 MHz | 7 | ±10 | ±10 | -20 to +85 | 60 | 3.2 x 2.5 x 0.6 |
| X1E0000210794 | TSX-3225 22.579200 MHz 18.0 +10.0-10.0 | 22.5792 MHz | 18 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211021 | TSX-3225 22.579200 MHz 10.0 +10.0-10.0 | 22.5792 MHz | 10 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210048 | TSX-3225 24.000000 MHz 9.0 +10.0-10.0 | 24 MHz | 9 | ±10 | ±20 | -40 to +105 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210121 | TSX-3225 24.000000 MHz 8.0 +10.0-10.0 | 24 MHz | 8 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210122 | TSX-3225 24.000000 MHz 9.0 +10.0-10.0 | 24 MHz | 9 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210123 | TSX-3225 24.000000 MHz 10.0 +10.0-10.0 | 24 MHz | 10 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210124 | TSX-3225 24.000000 MHz 12.0 +10.0-10.0 | 24 MHz | 12 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210125 | TSX-3225 24.000000 MHz 16.0 +10.0-10.0 | 24 MHz | 16 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210126 | TSX-3225 24.000000 MHz 8.0 +10.0-10.0 | 24 MHz | 8 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210127 | TSX-3225 24.000000 MHz 9.0 +10.0-10.0 | 24 MHz | 9 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210128 | TSX-3225 24.000000 MHz 10.0 +10.0-10.0 | 24 MHz | 10 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210129 | TSX-3225 24.000000 MHz 12.0 +10.0-10.0 | 24 MHz | 12 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210130 | TSX-3225 24.000000 MHz 16.0 +10.0-10.0 | 24 MHz | 16 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210255 | TSX-3225 24.000000 MHz 9.0 +10.0-10.0 | 24 MHz | 9 | ±10 | ±15 | -30 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210264 | TSX-3225 24.000000 MHz 18.0 +10.0-10.0 | 24 MHz | 18 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210468 | TSX-3225 24.000000 MHz 18.0 +10.0-10.0 | 24 MHz | 18 | ±10 | ±15 | -20 to +70 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210527 | TSX-3225 24.000000 MHz 18.0 +10.0-10.0 | 24 MHz | 18 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210579 | TSX-3225 24.000000 MHz 15.0 +10.0-10.0 | 24 MHz | 15 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210586 | TSX-3225 24.000000 MHz 7.0 +10.0-10.0 | 24 MHz | 7 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210615 | TSX-3225 24.000000 MHz 9.0 +10.0-10.0 | 24 MHz | 9 | ±10 | ±9 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210670 | TSX-3225 24.000000 MHz 18.0 +10.0-10.0 | 24 MHz | 18 | ±10 | ±15 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210697 | TSX-3225 24.000000 MHz 20.0 +10.0-10.0 | 24 MHz | 20 | ±10 | ±10 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210710 | TSX-3225 24.000000 MHz 18.0 +10.0-10.0 | 24 MHz | 18 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210725 | TSX-3225 24.000000 MHz 9.0 +10.0-10.0 | 24 MHz | 9 | ±10 | ±7 | 0 to +60 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210807 | TSX-3225 24.000000 MHz 7.0 +10.0-10.0 | 24 MHz | 7 | ±10 | ±15 | -10 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210812 | TSX-3225 24.000000 MHz 18.0 +10.0-10.0 | 24 MHz | 18 | ±10 | ±25 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210832 | TSX-3225 24.000000 MHz 18.0 +30.0-30.0 | 24 MHz | 18 | ±30 | ±30 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210836 | TSX-3225 24.000000 MHz 9.0 +10.0-10.0 | 24 MHz | 9 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210880 | TSX-3225 24.000000 MHz 6.0 +10.0-10.0 | 24 MHz | 6 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210888 | TSX-3225 24.000000 MHz 8.0 +10.0-10.0 | 24 MHz | 8 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210904 | TSX-3225 24.000000 MHz 20.0 +10.0-10.0 | 24 MHz | 20 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210907 | TSX-3225 24.000000 MHz 12.0 +10.0-10.0 | 24 MHz | 12 | ±10 | ±15 | -30 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210933 | TSX-3225 24.000000 MHz 12.0 +30.0-30.0 | 24 MHz | 12 | ±30 | ±30 | -40 to +105 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210945 | TSX-3225 24.000000 MHz 18.0 +10.0-10.0 | 24 MHz | 18 | ±10 | ±35 | -40 to +105 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211073 | TSX-3225 24.000000 MHz 8.0 +10.0-10.0 | 24 MHz | 8 | ±10 | ±30 | -40 to +105 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211099 | TSX-3225 24.000000 MHz 22.0 +30.0-30.0 | 24 MHz | 22 | ±30 | ±30 | -20 to +70 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211134 | TSX-3225 24.000000 MHz 18.0 +10.0-10.0 | 24 MHz | 18 | ±10 | ±20 | -40 to +105 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211158 | TSX-3225 24.000000 MHz 10.0 +10.0-10.0 | 24 MHz | 10 | ±10 | ±10 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210301 | TSX-3225 24.576000 MHz 12.0 +10.0-10.0 | 24.576 MHz | 12 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210417 | TSX-3225 24.576000 MHz 9.0 +10.0-10.0 | 24.576 MHz | 9 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210427 | TSX-3225 24.576000 MHz 12.0 +10.0-10.0 | 24.576 MHz | 12 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210592 | TSX-3225 24.576000 MHz 8.0 +10.0-10.0 | 24.576 MHz | 8 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210746 | TSX-3225 24.576000 MHz 15.0 +10.0-10.0 | 24.576 MHz | 15 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211063 | TSX-3225 24.576000 MHz 7.0 +10.0-10.0 | 24.576 MHz | 7 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211124 | TSX-3225 24.576000 MHz 16.0 +10.0-10.0 | 24.576 MHz | 16 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210131 | TSX-3225 25.000000 MHz 8.0 +10.0-10.0 | 25 MHz | 8 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210132 | TSX-3225 25.000000 MHz 9.0 +10.0-10.0 | 25 MHz | 9 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210133 | TSX-3225 25.000000 MHz 10.0 +10.0-10.0 | 25 MHz | 10 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210134 | TSX-3225 25.000000 MHz 12.0 +10.0-10.0 | 25 MHz | 12 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210135 | TSX-3225 25.000000 MHz 16.0 +10.0-10.0 | 25 MHz | 16 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210136 | TSX-3225 25.000000 MHz 8.0 +10.0-10.0 | 25 MHz | 8 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210137 | TSX-3225 25.000000 MHz 9.0 +10.0-10.0 | 25 MHz | 9 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210138 | TSX-3225 25.000000 MHz 10.0 +10.0-10.0 | 25 MHz | 10 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210256 | TSX-3225 25.000000 MHz 9.0 +10.0-10.0 | 25 MHz | 9 | ±10 | ±15 | -30 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210263 | TSX-3225 25.000000 MHz 18.0 +10.0-10.0 | 25 MHz | 18 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210315 | TSX-3225 25.000000 MHz 18.0 +10.0-10.0 | 25 MHz | 18 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210352 | TSX-3225 25.000000 MHz 20.0 +10.0-10.0 | 25 MHz | 20 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210518 | TSX-3225 25.000000 MHz 18.0 +10.0-10.0 | 25 MHz | 18 | ±10 | ±10 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210595 | TSX-3225 25.000000 MHz 20.0 +20.0-20.0 | 25 MHz | 20 | ±20 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210605 | TSX-3225 25.000000 MHz 18.0 +10.0-10.0 | 25 MHz | 18 | ±10 | ±10 | -20 to +70 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210610 | TSX-3225 25.000000 MHz 12.0 +10.0-10.0 | 25 MHz | 12 | ±10 | ±10 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210614 | TSX-3225 25.000000 MHz 9.0 +10.0-10.0 | 25 MHz | 9 | ±10 | ±9 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210621 | TSX-3225 25.000000 MHz 9.0 +10.0-10.0 | 25 MHz | 9 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210629 | TSX-3225 25.000000 MHz 12.0 +10.0-10.0 | 25 MHz | 12 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210637 | TSX-3225 25.000000 MHz 12.0 +15.0-15.0 | 25 MHz | 12 | ±15 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210648 | TSX-3225 25.000000 MHz 18.0 +10.0-10.0 | 25 MHz | 18 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210677 | TSX-3225 25.000000 MHz 12.0 +10.0-10.0 | 25 MHz | 12 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210683 | TSX-3225 25.000000 MHz 20.0 +10.0-10.0 | 25 MHz | 20 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210709 | TSX-3225 25.000000 MHz 15.0 +10.0-10.0 | 25 MHz | 15 | ±10 | ±10 | -20 to +70 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210724 | TSX-3225 25.000000 MHz 18.0 +10.0-10.0 | 25 MHz | 18 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210726 | TSX-3225 25.000000 MHz 7.0 +10.0-10.0 | 25 MHz | 7 | ±10 | ±10 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210734 | TSX-3225 25.000000 MHz 8.0 +10.0-10.0 | 25 MHz | 8 | ±10 | ±20 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210923 | TSX-3225 25.000000 MHz 20.0 +20.0-20.0 | 25 MHz | 20 | ±20 | ±20 | -40 to +105 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210929 | TSX-3225 25.000000 MHz 22.0 +10.0-10.0 | 25 MHz | 22 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210931 | TSX-3225 25.000000 MHz 14.0 +20.0-20.0 | 25 MHz | 14 | ±20 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210934 | TSX-3225 25.000000 MHz 12.0 +30.0-30.0 | 25 MHz | 12 | ±30 | ±30 | -40 to +105 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210935 | TSX-3225 25.000000 MHz 10.0 +10.0-10.0 | 25 MHz | 10 | ±10 | ±10 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210950 | TSX-3225 25.000000 MHz 12.0 +10.0-10.0 | 25 MHz | 12 | ±10 | ±30 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210966 | TSX-3225 25.000000 MHz 18.0 +30.0-30.0 | 25 MHz | 18 | ±30 | ±30 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210976 | TSX-3225 25.000000 MHz 10.0 +10.0-10.0 | 25 MHz | 10 | ±10 | ±20 | -40 to +105 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210980 | TSX-3225 25.000000 MHz 7.0 +10.0-10.0 | 25 MHz | 7 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210982 | TSX-3225 25.000000 MHz 8.0 +10.0-10.0 | 25 MHz | 8 | ±10 | ±10 | 0 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211030 | TSX-3225 25.000000 MHz 7.0 +10.0-10.0 | 25 MHz | 7 | ±10 | ±20 | -40 to +105 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211031 | TSX-3225 25.000000 MHz 25.0 +10.0-10.0 | 25 MHz | 25 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211036 | TSX-3225 25.000000 MHz 12.0 +10.0-10.0 | 25 MHz | 12 | ±10 | ±10 | 0 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211055 | TSX-3225 25.000000 MHz 18.0 +20.0-20.0 | 25 MHz | 18 | ±20 | ±20 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211071 | TSX-3225 25.000000 MHz 12.0 +15.0-15.0 | 25 MHz | 12 | ±15 | ±15 | -10 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211106 | TSX-3225 25.000750 MHz 9.0 +10.0-10.0 | 25.00075 MHz | 9 | ±10 | ±20 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210141 | TSX-3225 26.000000 MHz 8.0 +10.0-10.0 | 26 MHz | 8 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210142 | TSX-3225 26.000000 MHz 9.0 +10.0-10.0 | 26 MHz | 9 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210143 | TSX-3225 26.000000 MHz 10.0 +10.0-10.0 | 26 MHz | 10 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210144 | TSX-3225 26.000000 MHz 12.0 +10.0-10.0 | 26 MHz | 12 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210145 | TSX-3225 26.000000 MHz 16.0 +10.0-10.0 | 26 MHz | 16 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210146 | TSX-3225 26.000000 MHz 8.0 +10.0-10.0 | 26 MHz | 8 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210147 | TSX-3225 26.000000 MHz 9.0 +10.0-10.0 | 26 MHz | 9 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210148 | TSX-3225 26.000000 MHz 10.0 +10.0-10.0 | 26 MHz | 10 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210149 | TSX-3225 26.000000 MHz 12.0 +10.0-10.0 | 26 MHz | 12 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210150 | TSX-3225 26.000000 MHz 16.0 +10.0-10.0 | 26 MHz | 16 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210181 | TSX-3225 26.000000 MHz 20.0 +10.0-10.0 | 26 MHz | 20 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210350 | TSX-3225 26.000000 MHz 9.0 +10.0-10.0 | 26 MHz | 9 | ±10 | ±10 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210506 | TSX-3225 26.000000 MHz 18.0 +10.0-10.0 | 26 MHz | 18 | ±10 | ±20 | -40 to +105 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210611 | TSX-3225 26.000000 MHz 18.0 +10.0-10.0 | 26 MHz | 18 | ±10 | ±15 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210809 | TSX-3225 26.000000 MHz 10.0 +10.0-10.0 | 26 MHz | 10 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210848 | TSX-3225 26.000000 MHz 12.0 +10.0-10.0 | 26 MHz | 12 | ±10 | ±10 | -10 to +70 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210932 | TSX-3225 26.000000 MHz 8.0 +10.0-10.0 | 26 MHz | 8 | ±10 | ±8 | -10 to +70 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210574 | TSX-3225 26.635300 MHz 20.0 +10.0-10.0 | 26.6353 MHz | 20 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210151 | TSX-3225 27.000000 MHz 8.0 +10.0-10.0 | 27 MHz | 8 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210152 | TSX-3225 27.000000 MHz 9.0 +10.0-10.0 | 27 MHz | 9 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210153 | TSX-3225 27.000000 MHz 10.0 +10.0-10.0 | 27 MHz | 10 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210154 | TSX-3225 27.000000 MHz 12.0 +10.0-10.0 | 27 MHz | 12 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210156 | TSX-3225 27.000000 MHz 8.0 +10.0-10.0 | 27 MHz | 8 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210157 | TSX-3225 27.000000 MHz 9.0 +10.0-10.0 | 27 MHz | 9 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210158 | TSX-3225 27.000000 MHz 10.0 +10.0-10.0 | 27 MHz | 10 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210159 | TSX-3225 27.000000 MHz 12.0 +10.0-10.0 | 27 MHz | 12 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210363 | TSX-3225 27.000000 MHz 18.0 +10.0-10.0 | 27 MHz | 18 | ±10 | ±10 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210384 | TSX-3225 27.000000 MHz 11.0 +10.0-10.0 | 27 MHz | 11 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210426 | TSX-3225 27.000000 MHz 12.0 +10.0-10.0 | 27 MHz | 12 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210707 | TSX-3225 27.000000 MHz 18.0 +10.0-10.0 | 27 MHz | 18 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210754 | TSX-3225 27.000000 MHz 7.0 +10.0-10.0 | 27 MHz | 7 | ±10 | ±15 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210759 | TSX-3225 27.000000 MHz 20.0 +10.0-10.0 | 27 MHz | 20 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210760 | TSX-3225 27.000000 MHz 22.0 +10.0-10.0 | 27 MHz | 22 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210821 | TSX-3225 27.000000 MHz 18.0 +10.0-10.0 | 27 MHz | 18 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211141 | TSX-3225 27.000000 MHz 18.0 +10.0-10.0 | 27 MHz | 18 | ±10 | ±15 | -20 to +95 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211142 | TSX-3225 27.000000 MHz 8.0 +10.0-10.0 | 27 MHz | 8 | ±10 | ±20 | -40 to +105 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210502 | TSX-3225 27.120000 MHz 12.0 +10.0-10.0 | 27.12 MHz | 12 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210680 | TSX-3225 27.120000 MHz 10.0 +10.0-10.0 | 27.12 MHz | 10 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210711 | TSX-3225 27.120000 MHz 10.0 +10.0-10.0 | 27.12 MHz | 10 | ±10 | ±30 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210745 | TSX-3225 27.120000 MHz 8.0 +10.0-10.0 | 27.12 MHz | 8 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210805 | TSX-3225 27.120000 MHz 9.0 +10.0-10.0 | 27.12 MHz | 9 | ±10 | ±9 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210860 | TSX-3225 27.120000 MHz 12.0 +10.0-10.0 | 27.12 MHz | 12 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211007 | TSX-3225 27.120000 MHz 20.0 +10.0-10.0 | 27.12 MHz | 20 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211033 | TSX-3225 27.120000 MHz 18.0 +10.0-10.0 | 27.12 MHz | 18 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210740 | TSX-3225 28.636360 MHz 16.0 +10.0-10.0 | 28.63636 MHz | 16 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210916 | TSX-3225 28.636360 MHz 18.0 +10.0-10.0 | 28.63636 MHz | 18 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210253 | TSX-3225 30.000000 MHz 16.0 +10.0-10.0 | 30 MHz | 16 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210295 | TSX-3225 30.000000 MHz 9.0 +10.0-10.0 | 30 MHz | 9 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210410 | TSX-3225 30.000000 MHz 7.0 +10.0-10.0 | 30 MHz | 7 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210481 | TSX-3225 30.000000 MHz 12.0 +10.0-10.0 | 30 MHz | 12 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210596 | TSX-3225 30.000000 MHz 10.0 +10.0-10.0 | 30 MHz | 10 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210602 | TSX-3225 30.000000 MHz 10.0 +10.0-10.0 | 30 MHz | 10 | ±10 | ±10 | -20 to +70 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211010 | TSX-3225 30.000000 MHz 11.0 +10.0-10.0 | 30 MHz | 11 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210477 | TSX-3225 31.250000 MHz 9.0 +10.0-10.0 | 31.25 MHz | 9 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210161 | TSX-3225 32.000000 MHz 8.0 +10.0-10.0 | 32 MHz | 8 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210162 | TSX-3225 32.000000 MHz 9.0 +10.0-10.0 | 32 MHz | 9 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210163 | TSX-3225 32.000000 MHz 10.0 +10.0-10.0 | 32 MHz | 10 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210164 | TSX-3225 32.000000 MHz 12.0 +10.0-10.0 | 32 MHz | 12 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210165 | TSX-3225 32.000000 MHz 16.0 +10.0-10.0 | 32 MHz | 16 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210166 | TSX-3225 32.000000 MHz 8.0 +10.0-10.0 | 32 MHz | 8 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210167 | TSX-3225 32.000000 MHz 9.0 +10.0-10.0 | 32 MHz | 9 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210168 | TSX-3225 32.000000 MHz 10.0 +10.0-10.0 | 32 MHz | 10 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210169 | TSX-3225 32.000000 MHz 12.0 +10.0-10.0 | 32 MHz | 12 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210170 | TSX-3225 32.000000 MHz 16.0 +10.0-10.0 | 32 MHz | 16 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210258 | TSX-3225 32.000000 MHz 10.0 +10.0-10.0 | 32 MHz | 10 | ±10 | ±15 | -30 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210425 | TSX-3225 32.000000 MHz 16.0 +10.0-10.0 | 32 MHz | 16 | ±10 | ±16 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210593 | TSX-3225 32.000000 MHz 7.0 +10.0-10.0 | 32 MHz | 7 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210646 | TSX-3225 32.000000 MHz 8.0 +10.0-10.0 | 32 MHz | 8 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210668 | TSX-3225 32.000000 MHz 12.0 +10.0-10.0 | 32 MHz | 12 | ±10 | ±12 | -30 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211001 | TSX-3225 32.000000 MHz 9.0 +10.0-10.0 | 32 MHz | 9 | ±10 | ±10 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211108 | TSX-3225 32.000000 MHz 18.0 +10.0-10.0 | 32 MHz | 18 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211121 | TSX-3225 32.000000 MHz 12.0 +10.0-10.0 | 32 MHz | 12 | ±10 | ±10 | -30 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211153 | TSX-3225 32.000000 MHz 9.0 +10.0-10.0 | 32 MHz | 9 | ±10 | ±8 | -10 to +55 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211034 | TSX-3225 33.333000 MHz 8.0 +10.0-10.0 | 33.333 MHz | 8 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211002 | TSX-3225 33.333330 MHz 8.0 +10.0-10.0 | 33.33333 MHz | 8 | ±10 | ±10 | 0 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210394 | TSX-3225 37.800000 MHz 8.5 +10.0-10.0 | 37.8 MHz | 8.5 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210218 | TSX-3225 38.400000 MHz 10.0 +10.0-10.0 | 38.4 MHz | 10 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210432 | TSX-3225 38.400000 MHz 9.0 +10.0-10.0 | 38.4 MHz | 9 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210642 | TSX-3225 38.400000 MHz 8.5 +10.0-10.0 | 38.4 MHz | 8.5 | ±10 | ±10 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210660 | TSX-3225 38.400000 MHz 6.0 +20.0-20.0 | 38.4 MHz | 6 | ±20 | ±20 | -10 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211012 | TSX-3225 38.400000 MHz 12.0 +10.0-10.0 | 38.4 MHz | 12 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211018 | TSX-3225 38.400000 MHz 8.0 +10.0-10.0 | 38.4 MHz | 8 | ±10 | ±15 | -30 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211062 | TSX-3225 38.400000 MHz 10.0 +10.0-10.0 | 38.4 MHz | 10 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211128 | TSX-3225 38.400000 MHz 8.0 +10.0-10.0 | 38.4 MHz | 8 | ±10 | ±15 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211017 | TSX-3225 38.880000 MHz 12.0 +20.0-20.0 | 38.88 MHz | 12 | ±20 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211107 | TSX-3225 38.880000 MHz 12.0 +10.0-10.0 | 38.88 MHz | 12 | ±10 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210377 | TSX-3225 39.000000 MHz 8.0 +10.0-10.0 | 39 MHz | 8 | ±10 | ±11 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211131 | TSX-3225 39.000000 MHz 10.0 +10.0-10.0 | 39 MHz | 10 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210172 | TSX-3225 40.000000 MHz 9.0 +10.0-10.0 | 40 MHz | 9 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210173 | TSX-3225 40.000000 MHz 10.0 +10.0-10.0 | 40 MHz | 10 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210174 | TSX-3225 40.000000 MHz 12.0 +10.0-10.0 | 40 MHz | 12 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210175 | TSX-3225 40.000000 MHz 16.0 +10.0-10.0 | 40 MHz | 16 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210176 | TSX-3225 40.000000 MHz 8.0 +10.0-10.0 | 40 MHz | 8 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210177 | TSX-3225 40.000000 MHz 9.0 +10.0-10.0 | 40 MHz | 9 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210178 | TSX-3225 40.000000 MHz 10.0 +10.0-10.0 | 40 MHz | 10 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210179 | TSX-3225 40.000000 MHz 12.0 +10.0-10.0 | 40 MHz | 12 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210241 | TSX-3225 40.000000 MHz 15.0 +10.0-10.0 | 40 MHz | 15 | ±10 | ±10 | 0 to +70 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210266 | TSX-3225 40.000000 MHz 18.0 +10.0-10.0 | 40 MHz | 18 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210367 | TSX-3225 40.000000 MHz 10.0 +10.0-10.0 | 40 MHz | 10 | ±10 | ±15 | -30 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210769 | TSX-3225 40.000000 MHz 10.0 +30.0-30.0 | 40 MHz | 10 | ±30 | ±30 | -30 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210775 | TSX-3225 40.000000 MHz 11.9 +10.0-10.0 | 40 MHz | 11.9 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210915 | TSX-3225 40.000000 MHz 7.0 +10.0-10.0 | 40 MHz | 7 | ±10 | ±30 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210917 | TSX-3225 40.000000 MHz 7.0 +10.0-10.0 | 40 MHz | 7 | ±10 | ±30 | -40 to +105 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211022 | TSX-3225 40.000000 MHz 15.0 +10.0-10.0 | 40 MHz | 15 | ±10 | ±10 | -20 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211037 | TSX-3225 40.000000 MHz 10.0 +10.0-10.0 | 40 MHz | 10 | ±10 | ±20 | -40 to +105 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210265 | TSX-3225 48.000000 MHz 12.0 +10.0-10.0 | 48 MHz | 12 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210403 | TSX-3225 48.000000 MHz 16.0 +10.0-10.0 | 48 MHz | 16 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210439 | TSX-3225 48.000000 MHz 18.0 +20.0-20.0 | 48 MHz | 18 | ±20 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210695 | TSX-3225 48.000000 MHz 12.0 +15.0-15.0 | 48 MHz | 12 | ±15 | ±18 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210762 | TSX-3225 48.000000 MHz 18.0 +10.0-10.0 | 48 MHz | 18 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210834 | TSX-3225 48.000000 MHz 10.0 +10.0-10.0 | 48 MHz | 10 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210842 | TSX-3225 48.000000 MHz 10.0 +10.0-10.0 | 48 MHz | 10 | ±10 | ±10 | -30 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210866 | TSX-3225 48.000000 MHz 7.0 +10.0-10.0 | 48 MHz | 7 | ±10 | ±10 | -20 to +75 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000210981 | TSX-3225 48.000000 MHz 8.0 +10.0-10.0 | 48 MHz | 8 | ±10 | ±15 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211059 | TSX-3225 48.000000 MHz 12.0 +10.0-10.0 | 48 MHz | 12 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211114 | TSX-3225 48.000000 MHz 8.0 +10.0-10.0 | 48 MHz | 8 | ±10 | ±20 | -40 to +85 | 40 | 3.2 x 2.5 x 0.6 |
| X1E0000211117 | TSX-3225 48.000000 MHz 12.0 +20.0-20.0 | 48 MHz | 12 | ±20 | ±35 | -40 to +105 | 40 | 3.2 x 2.5 x 0.6 |
Tính năng chính
- Dải tần số : 16 MHz đến 50 MHz
- Kích thước ngoài : 3.2 x 2.5 x 0.6mm
- Bậc hài (Overtone) : Cơ bản (Fundamental)
- Ứng dụng; - Điện thoại di động, Bluetooth, W-LAN, radio băng tần ISM, xung nhịp cho MPU
Tài liệu
- Tóm tắt (Brief Sheet) (tiếng Anh)
- RoHS (tiếng Anh)
- REACH (tiếng Anh)
- China RoHS (tiếng Anh)
- California Proposition 65 (tiếng Anh)
- TSCA PBT (tiếng Anh)
- Không halogen (Halogen Free) (tiếng Anh)
Thông tin và hình ảnh theo Epson. Liên hệ R&P để được tư vấn chọn mã phù hợp và báo giá.
Mã tương tự
| Ảnh | Mã linh kiện | Đóng gói | Tồn kho | Đơn giá (chưa VAT) | Đặt mua |
|---|---|---|---|---|---|

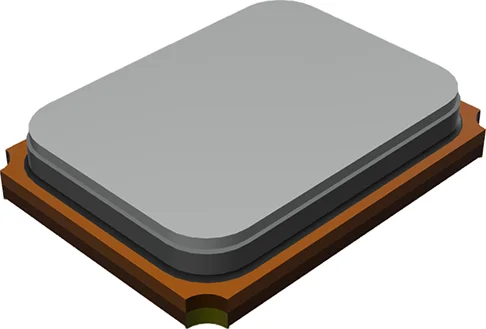

| FA-118T EpsonThạch anh dải MHz (MHz Range Crystal Unit). SMD kích thước nhỏ, profile thấp. Dải tần số : 24MHz đến 54MHz 1.6 x 1.2 x 0.35 mm Datasheet (PDF) | 1.6 x 1.2 x 0.35 mm | Đặt hàng trước | Liên hệ báo giá | ||

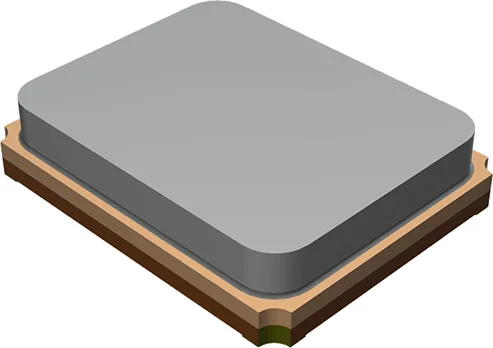

| FA-128 EpsonThạch anh dải MHz (MHz Range Crystal Unit). SMD kích thước nhỏ, profile thấp. Dải tần số : 19.2MHz to 54MHz 2 x 1.6 x 0.5 mm Datasheet (PDF) | 2 x 1.6 x 0.5 mm | Đặt hàng trước | Liên hệ báo giá | ||

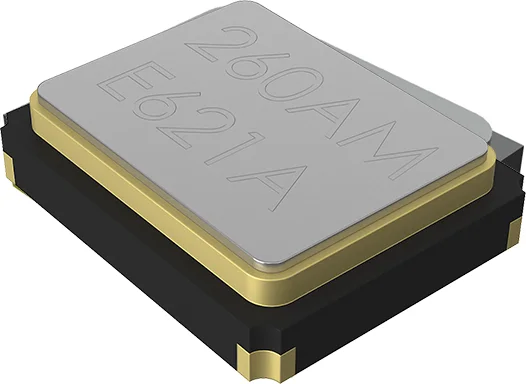

| FA-20H EpsonThạch anh dải MHz (MHz Range Crystal Unit). SMD kích thước nhỏ, profile thấp. Dải tần số : 12MHz to 54MHz 2.5 x 2 x 0.55 mm Datasheet (PDF) | 2.5 x 2 x 0.55 mm | Đặt hàng trước | Liên hệ báo giá | ||

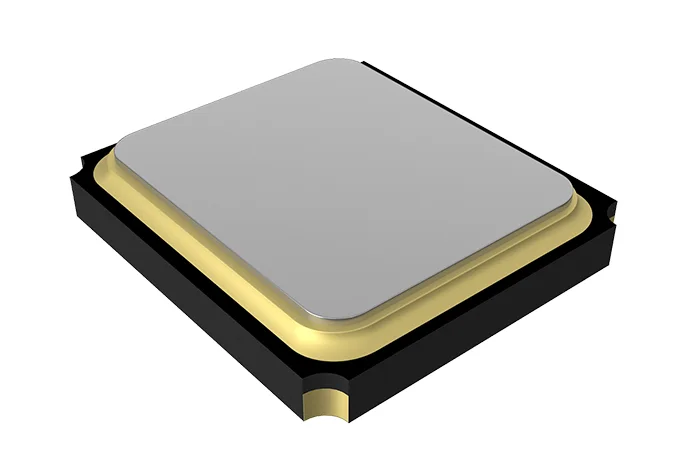

| FA-238 EpsonThạch anh dải MHz (MHz Range Crystal Unit). SMD kích thước nhỏ, profile thấp. Dải tần số : 16MHz đến 50MHz 3.2 x 2.5 x 0.7 mm Datasheet (PDF) | 3.2 x 2.5 x 0.7 mm | Đặt hàng trước | Liên hệ báo giá | ||

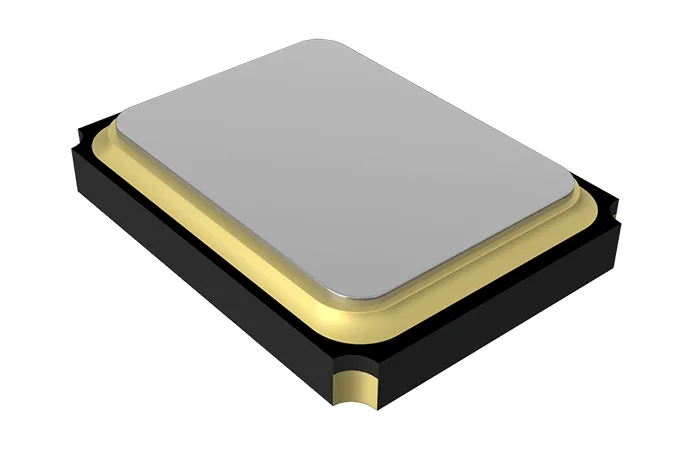

| FA-238A EpsonThạch anh dải MHz (MHz Range Crystal Unit). SMD kích thước nhỏ, profile thấp. Dải tần số : 12MHz to 50.0MHz 3.2 x 2.5 x 0.7 mm Datasheet (PDF) | 3.2 x 2.5 x 0.7 mm | Đặt hàng trước | Liên hệ báo giá | ||

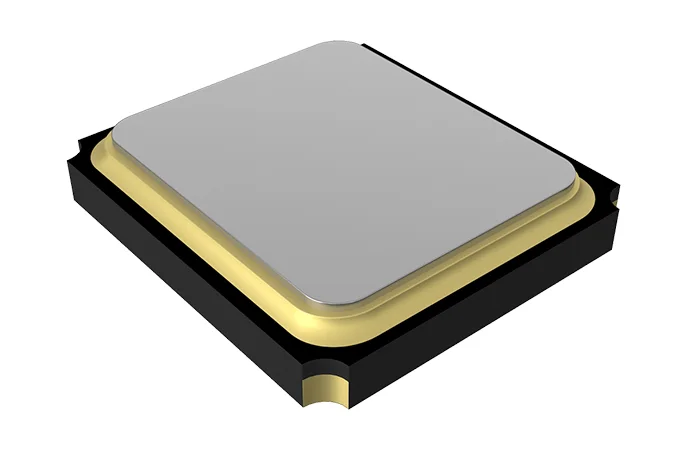

| FA-238V EpsonThạch anh dải MHz (MHz Range Crystal Unit). SMD kích thước nhỏ, profile thấp. Dải tần số : 12MHz đến 15.9999MHz 3.2 x 2.5 x 0.7 mm Datasheet (PDF) | 3.2 x 2.5 x 0.7 mm | Đặt hàng trước | Liên hệ báo giá | ||

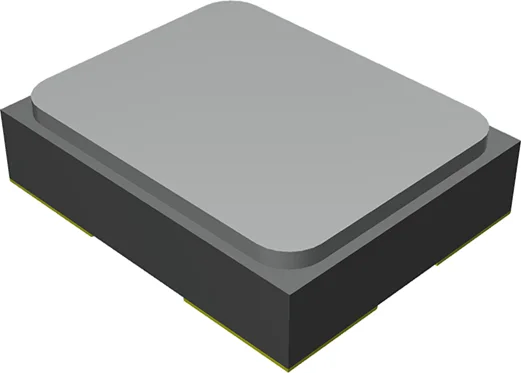

| FA1008AN EpsonThạch anh dải MHz (MHz Range Crystal Unit). SMD kích thước nhỏ, profile thấp. Dải tần số : 40 MHz đến 100 MHz 1 x 0.8 x 0.3 mm Datasheet (PDF) | 1 x 0.8 x 0.3 mm | Đặt hàng trước | Liên hệ báo giá | ||

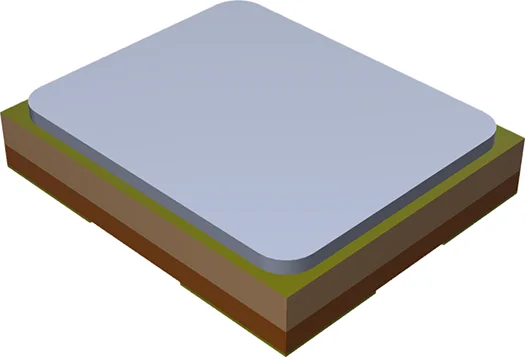

| FA1210AN EpsonThạch anh dải MHz (MHz Range Crystal Unit). SMD kích thước nhỏ, profile thấp. Dải tần số : 32MHz đến 100MHz 1.2 x 1 x 0.3 mm Datasheet (PDF) | 1.2 x 1 x 0.3 mm | Đặt hàng trước | Liên hệ báo giá |
