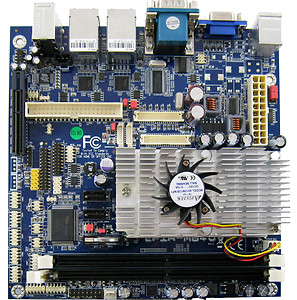

EPIA-M840-16
The VIA EPIA-M840 packs the latest VIA Nano E-Series processor, dual Gigabit LAN, eight COM ports and two dual channel 24-bit LVDS channels making an ideal solution for a range of…
Thông số
- Mã nhà sản xuất
- EPIA-M840-16
- Hãng sản xuất
- VIA
- Processor
- 1.6GHz VIA Nano™ E (with fan)
- Chipset
- VX800 Unified Digital Media IGP chipset
- System Memory
- 2 x DDR2 533/667 DIMM sockets Up to 4GB memory size
- Super I/O
- Fintek F81865-I
- VGA
- Integrated VIA Chrome9™ HC3 DX9 3D/2D graphics with VC1, MPEG-2, WMV9 decoding acceleration
- Onboard IDE
- 1 x UltraDMA 133/100 pin connector with 2.54mm 40-pin
- Onboard Serial ATA
- 2 x SATA connectors (pin#7 powered with selectable GND/5V) 2 x SATA 3.5” HDD power support (for DC-In SKU only)
- Onboard LAN
- 2 x VIA VT6130 Gigabit LAN controllers
- Onboard Audio
- VIA VT1708S High Definition Audio Codec
- Rear I/O Connectors
- 1 x PS/2 KB/MS port 1 x VGA port 2 x Serial ports (powered with selectable 5V/12V) 4 x USB 2.0 ports 2 x GigaLAN ports 3 x Audio jacks (Line-out, Mic-in, Line-i
- Onboard I/O Connectors
- 1 x CF Type I 2 x USB ports 1 x Front audio pin header 1 x PS/2 keyboard/mouse pin header 6 x RS-232 pin headers (powered with selectable 5V/12V) 1 x LPT pin header 2 x Digital I/O pin headers (GPI x 8 + GPO x 8) 1 x System temperature reading pin header 1 x Front panel pin header 2 x Smart fan connectors for CPU/Sys 1 x SIR pin header (IRDA 1.0) 1 x LPC pin header 1 x SMBUS supporting VIA MFX-01 module 1 x S/PDIF-out pin header 1 x PCIe x4 slot 2 x Dual-channel 24-bit LVDS 2 x Backlight control connectors for inverter power and brightness control
- Power
- ATX Power
- BIOS
- Award BIOS 4/8Mbit SPI Flash ROM
- Operating System
- Windows Embedded CE, Windows XP, Windows Embedded Standard, Linux
- System Monitoring & Management
- Keyboard Power-on, Timer Power-on System power management, AC power failure recovery Wake-on LAN, Watch Dog Timer
Thông tin chi tiết
The VIA EPIA-M840 packs the latest VIA Nano E-Series processor, dual Gigabit LAN, eight COM ports and two dual channel 24-bit LVDS channels making an ideal solution for a range of embedded applications including the latest industrial automation, kiosk, POI and HMI applications.
The VIA EPIA-M840 is available in both active and passive cooling configurations with a choice of either a fanless 1.2GHz or a performance oriented 1.6GHz VIA Nano E-Series processor. The VIA VX800 media system processor supports 2 of DDR2 DIMM system memory and provides DirectX9 integrated graphics, crystal clear HD audio and Gigabit networking and advanced video acceleration for MPEG-2, WMV9 and VC1 video formats, plus a VMR capable HD video processor.
Rear panel I/O includes dual Gigabit LAN ports, PS/2 support, a VGA port, two RS-232 5v/12v selectable COM ports, four USB 2.0 ports and audio jacks. On board pin headers provide 2 x dual channel 24-bit LVDS support (including backlight control), an additional six COM ports, a further two USB ports, LPT support, Digital I/O, SIR and LPC headers, a PCIe x4 slot and Compact Flash socket.
Mã tương tự
| Ảnh | Mã linh kiện | Đóng gói | Tồn kho | Đơn giá (chưa VAT) | Đặt mua |
|---|---|---|---|---|---|
| EPIA-M840-16P VIAThe VIA EPIA-M840 packs the latest VIA Nano E-Series processor, dual Gigabit LAN, eight COM ports and two dual channel 24-bit LVDS channels making an ideal solution for a range of… | — | 1 có sẵn |
| ||
| EPIA-M850-12EL VIAThe VIA EPIA M850-12EL Fanless Mini-ITX Embedded Mainboard pairs the latest 1. | — | 1 có sẵn |
| ||

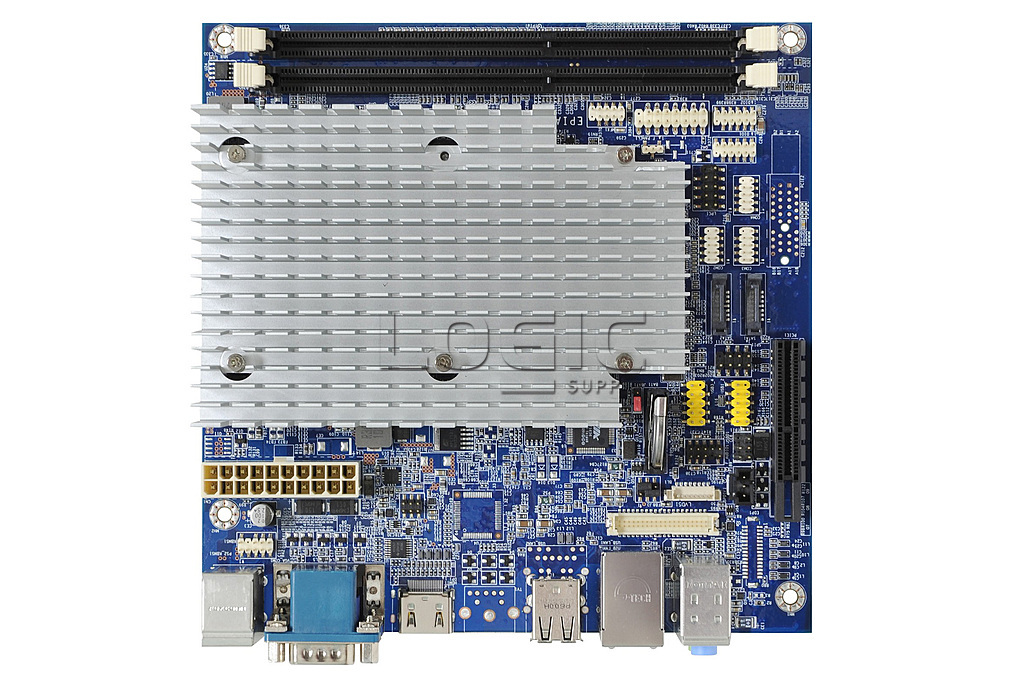

| EPIA-M850-16L VIAThe VIA EPIA M850-16L Mini-ITX Embedded Mainboard pairs the latest 64-bit VIA Nano E-series processor with the VIA VX900 media system processor, creating the most complete platform… | — | 1 có sẵn |
| ||
| EPIA-M860-12PE VIAThe VIA EPIA-M860 combines a 1.EPIA-M860-12PE - The VIA EPIA-M860 combines a 1. | — | Đặt hàng trước |
| ||
| EPIA-M900-12LQ VIAThe VIA EPIA-M900-12LQ Mini-ITX embedded board pairs the latest 1. | — | 1 có sẵn |
| ||

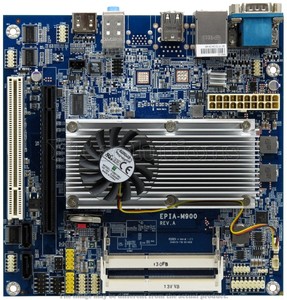

| EPIA-M900-16L VIAThe VIA EPIA-M900-16L Mini-ITX embedded board pairs the latest 1. | — | 1 có sẵn |
| ||

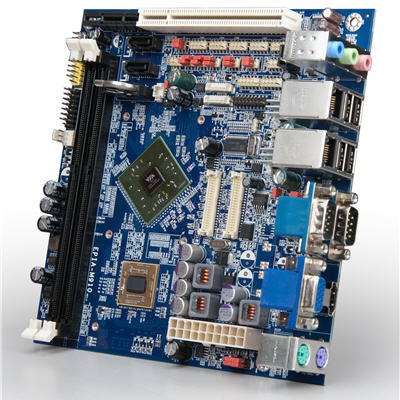

| EPIA-M910-10E VIAThe VIA EPIA-M910-10E combines the latest 1. | — | 1 có sẵn |
| ||

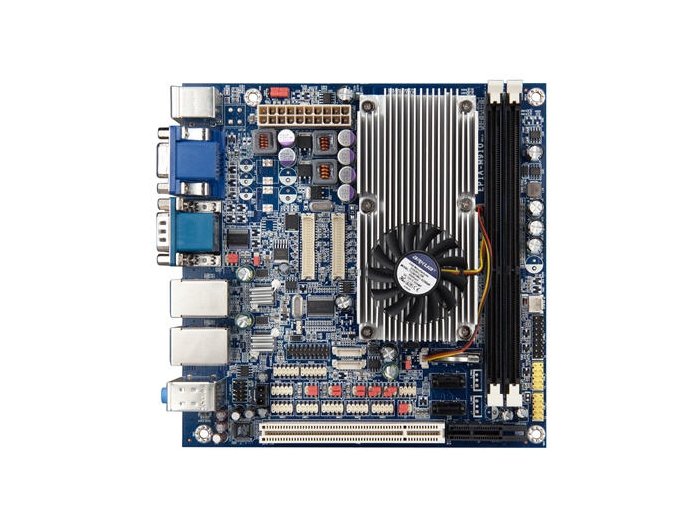

| EPIA-M910-10PE VIAThe VIA EPIA-M910 combines a choice of the latest VIA dual core processors with a raft of I/O features including dual Gigabit LAN, eight COM ports, (expandable to 12 with the VIA… | — | 1 có sẵn |
|
