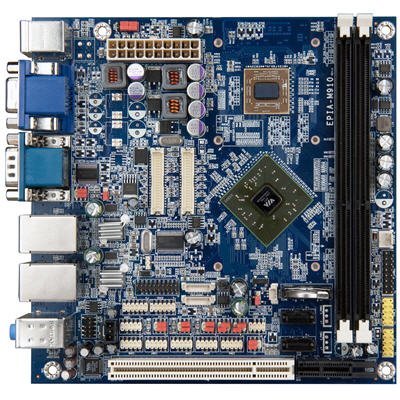

EPIA-M910-16P
The VIA EPIA-M910 combines a choice of the latest VIA dual core processors with a raft of I/O features including dual Gigabit LAN, eight COM ports, (expandable to 12 with the VIA…
Thông số
- Mã nhà sản xuất
- EPIA-M910-16P
- Hãng sản xuất
- VIA
- Processor
- VIA Dual Core Nano X2 E 1,6GHz - Avtive cooling
- Chipset
- VIA VX900 Media System Processor
- System Memory
- 2 x DDR3 1066 DIMM socket up to 8GB
- Graphics
- Integrated VIA Chrome9 HD DX9
- Expansion Slots
- 1 x PCI and 1 x PCIe x 1
- Onboard Super I/O
- Fintek 81865F-I + F81801
- Onboard Serial ATA
- 2 x SATA Connenctors
- Internal I/O
- 2 X USB 2.0 pin header for 4 ports 2 x SATA connectors 2 x SATA power connectors (DC-in SKU) 2 x SATA DOM power selectors 1 x LVDS Dual channel 18/24-bit (VT1636) 1 x LVDS Single channel 18/24-bit (VX900) 1 x Front audio pin header 1 x PS/2 mouse/keyboard pin header 6 x RS232 pin headers (powered with selectable 5V/12V) 1 x LPC pin header 1 x SMBUS pin header 1 x S/PDIF out connector 2 x Digital I/O pin headers (GPI x 8 / GPO x 8) 1 x Front panel pin header 2 x Smart fan pin headers for CPU and System 1 x 12V DC-in power
- Onboard LAN
- 2 x VIA VT6130 PCIe Gigabit Ethernet Conroller
- External I/O
- 1 x HDMI port 1 x VGA port 2 x Seriell ports (powered with selectable 5V/12V) 2 x GigaLan ports 4 x USB 2.0 3 x Audio jacks 2 x PS/2
- Onboard Audio
- VIA VT2021 HD Audio Codec
- Management
- Wake on Lan, Keyboard power on, Time power on, System power management, ACpower failure recovery, Watch Dog Timer
- Power
- DC-in power
- BIOS
- AMI BIOS 8Mbit flash memory
- Operating System
- Windows 7, Windows Embedded Standard 7, POSReady 7, Windows XP, Windows Embedded Standard, Compact Linux and VxWorks Power: 12V DC-in power
- Compliance
- CE/FCC/BSMI/RoHS
- Operating Temperature
- 0°C - 60°C
- Form Factor
- Mini-ITX 17cm x 17cm
- Packing List
- 1 x SATA cable 1 x Driver CD 1 x I/O bracket
Thông tin chi tiết
The VIA EPIA-M910 combines a choice of the latest VIA dual core processors with a raft of I/O features including dual Gigabit LAN, eight COM ports, (expandable to 12 with the VIA LPC-01/02 add-on card) and two 18/24-bit LVDS providing the ideal solution for a range of embedded applications including the latest POS, kiosk, ATM, gaming, digital signage, healthcare and digital media applications.
The VIA EPIA-M910 is available in both active and passive cooling configurations with the choice of the latest 1.2GHz VIA QuadCore E-Series processor, a 1.6GHz VIA Nano X2 E-Series dual core processor or a fanless 1.0GHz VIA Eden X2 dual core processor. Supporting up to 8GB of DDR3 system memory, the VIA EPIA-M910 is paired with the VIA VX900 media system processor, featuring the latest ChromotionHD 2.0 video engine, which boasts comprehensive hardware acceleration for the latest VC1, H.264, MPEG-2 and WMV9 HD formats at screen resolutions of up to 1080p without incurring a heavy CPU load. Display connectivity support includes onboard HDMI and VGA ports with pin headers for two 24-bit LVDS.
Rear panel I/O includes dual Gigabit LAN ports, PS/2 support, one HDMI port, a VGA port, two RS-232 5v/12v selectable COM ports, four USB 2.0 ports and audio jacks. On board pin headers provide one single-channel and one dual-channel 18/24-bit LVDS support (including backlight control), two SATA ports, an additional six COM ports, a further four USB ports, Digital I/O, and a PCIe x4 slot. The VIA EPIA-M910 is available with support for either ATX or DC-in power supplies.
Mã tương tự
| Ảnh | Mã linh kiện | Đóng gói | Tồn kho | Đơn giá (chưa VAT) | Đặt mua |
|---|---|---|---|---|---|
| EPIA-Mi304 VIAPhiên bản Intel Core 3 304 (1P+4LPE nhân / 5 luồng). Dòng SBC 3.5 inch dùng Intel Core Series 3 (Core 3 304/Core 5 315/Core 7 350), GPU Xe3 và NPU tích hợp đến 40 TOPS, DDR5, 4 LAN, 4 COM, GPIO 16-bit, nhiều khe M.2. Datasheet (PDF) | — | Đặt hàng trước | Liên hệ báo giá | ||
| EPIA-Mi315 VIAPhiên bản Intel Core 5 315 (2P+4LPE nhân / 6 luồng). Dòng SBC 3.5 inch dùng Intel Core Series 3 (Core 3 304/Core 5 315/Core 7 350), GPU Xe3 và NPU tích hợp đến 40 TOPS, DDR5, 4 LAN, 4 COM, GPIO 16-bit, nhiều khe M.2. Datasheet (PDF) | — | Đặt hàng trước | Liên hệ báo giá | ||
| EPIA-Mi350 VIAPhiên bản Intel Core 7 350 (2P+4LPE nhân / 6 luồng). Dòng SBC 3.5 inch dùng Intel Core Series 3 (Core 3 304/Core 5 315/Core 7 350), GPU Xe3 và NPU tích hợp đến 40 TOPS, DDR5, 4 LAN, 4 COM, GPIO 16-bit, nhiều khe M.2. Datasheet (PDF) | — | Đặt hàng trước | Liên hệ báo giá | ||
| EPIA-N800-10E VIAThe VIA EPIA N800 Series EPIA N800-10E Nano-ITX Fanless Embedded Mainboard is a compact and highly integrated Nano-ITX form factor embedded mainboard, which is rich in I/O… | — | 1 có sẵn |
| ||
| EPIA-N800-13 VIAThe VIA EPIA N800 Series EPIA N800-13 Nano-ITX Embedded Mainboard is a compact and highly integrated Nano-ITX form factor embedded mainboard, which is rich in I/O integration and… | — | 1 có sẵn |
| ||

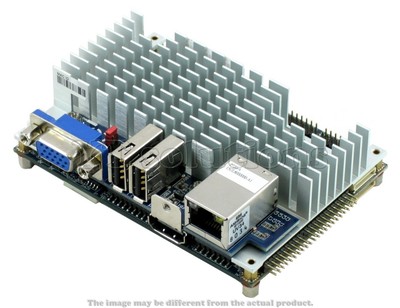

| EPIA-P720-10EL VIAThe VIA EPIA P720 (P720-10EL) Pico-ITX Embedded Mainboard is an ultra-compact and highly integrated Pico-ITX Mainboard and the smallest stand-alone form-factor available today. | — | 1 có sẵn |
| ||

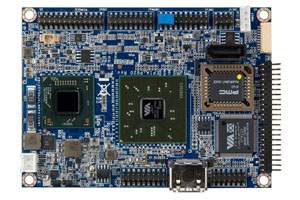

| EPIA-P820-12L VIAThe VIA EPIA P820 (P820-12L) Pico-ITX Embedded Mainboard is an ultra compact native x86 platform for a wide range of embedded system applications. | — | 1 có sẵn |
| ||
