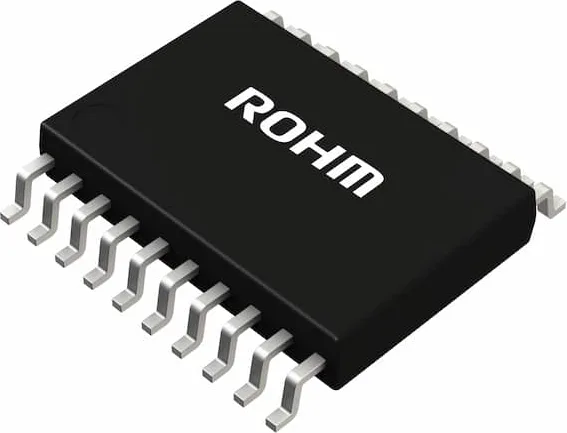

BD37503FV-E2

Thông số

Mã nhà sản xuất

BD37503FV-E2

Hãng sản xuất

ROHM Semiconductor

Đóng gói

SSOP-B20

RoHS

Đạt chuẩn RoHS

Tình trạng (Status)

Khuyến nghị cho thiết kế mới (Recommended)

Mã gốc (Base Part No.)

BD37503FV

Kiểu đóng gói (Packing)

Cuộn băng (Taping)

Số lượng mỗi đơn vị đóng gói

2500

Cấp nhạy ẩm (MSL)

1

Đầu vào (ch) 【Example1】3 (digits only) Single end type input is 3 channels. 【Example2】Stereo 2 (Stereo + digits) Single end type Stereo input is 2 pairs, 4 channels. 【Example3】Stereo 3/1/0 (Stereo + digits/digits/digits) Single end type Stereo input is 3 pairs maximum and zero pairs minimum depending on number of ISO Inputs and differential Inputs.">?

Stereo 3

ISO đầu vào (ch) 【Example】Stereo 2 (Stereo + digits) GND isolation type input is 2 pairs, 4 channels.">?

Stereo 1

Độ lợi đầu vào (dB/Ad-Sw) Yes: Advanced Switch or Micro Step Volume is embedded. -: Advanced Switch and Micro Step Volume is not embedded. 【Example】+26~0/Yes (digits/Yes) Input Gain can be adjusted from +26dB to 0dB. Advanced Switch or Micro Step Volume is embedded.">?

+20~0/-

Vcc (Min.) [V]

7

Vcc (Max.) [V]

9.5

Iq [mA]

20

Đầu ra

4

Băng điều chỉnh âm sắc

BASS, Treble

Số đầu vào đơn

3

Âm lượng (ch/Ad-Sw) Yes: Advanced Switch or Micro Step Volume is embedded. -: Advanced Switch and Micro Step Volume is not embedded. 【Example】6/Yes (digits/Yes or -) 6 Volume and Advanced Switch or Micro Step Volume is embedded.">?

2/có

Dải/bước âm lượng (dB/dB) 【Example】+23~-79,-∞/1 (digits,-∞/digits) Volume can be adjusted from +23dB to -79dB, -∞ (MUTE) and can be set 1dB step.">?

0~-36, -∞/1

[I] Independent from Input Selector / [C] Cascade from Input Selector [I]: It can be controlled volume of signal independent Input Selector. (Independent from input selector) [C]: It can be controlled volume of signal from Input Selector. (Cascade connection from Input Selector)">?

C

Fader (ch/Ad-Sw) Yes: Advanced Switch or Micro Step Volume is embedded. -: Advanced Switch and Micro Step Volume is not embedded. 【Example】6/Yes (digits/Yes or -) 6 Fader and Advanced Switch or Micro Step Volume is embedded.">?

4/có

Dải/bước Fader (dB/dB) 【Example】+23~-79,-∞/1 (digits,-∞/digits) Fader can be adjusted from +23dB to -79dB, -∞ (MUTE) and can be set 1dB step.">?

0~-62, -∞/1

Điện áp đầu ra (V, typ)

2.1

THD+N (dB)

0.001

EQ (number of Band) 【Example】3 (digits) 3 is three bands (Bass, Middle, Treble), 2 is two bands (Bass, Treble).">?

2

Nhiễu đầu ra [µVrms]

5.8

Khác 【Example1】Chip Select Chip select pin is available. 【Example2】GND Iso amp 2(GND Iso amp digits) Embedded 2 GND Isolation amplifiers. 【Example3】Loudness Loudness function is available. 【Example4】Stereo out 2(Stereo out digits) 2 pairs stereo LINEOUT are available.">?

Loudness

I/F

I2C

Điện áp nguồn cấp (V) 【Example1】6.5~9.5 (Positive voltage only) Operates single supply voltage with +6.5V~+9.5V. 【Example2】±6.5~±7.5 (Positive and negative voltage) Operates dual supply voltages with +6.5V~+7.5V and -6.5V~-7.5V. 【Example3】±5~±7.3 (10~14.6) (Positive and negative voltage (Positive voltage only)) Operates dual supply voltages with +6.5V~+7.3V and -6.5V~-7.3V, or operates single supply voltage with +10V~+14.6V only. 【Example4】7.0~9.5 (VCCL), VCCL~13.0 (VCCH) (2 types of positive voltage) Operates dual supply voltages with +7.0V~+9.5V (VCCL) and VCCL~13.0V (VCCH).">?

7.0~9.5

Nhiệt độ (Min.) [°C]

-40

Nhiệt độ (Max.) [°C]

85

Kích thước vỏ [mm]

6.5x6.4 (t=1.45)
